Understanding EIGRP Routing: A Lab Walkthrough

Introduction

In this lab, I set up a simple topology to experiment with Enhanced Interior Gateway Routing Protocol (EIGRP). EIGRP is a distance-vector routing protocol used on a computer network for automating routing decisions and configuration. It was developed by Cisco as an enhancement to the older IGRP protocol, making it much more efficient and scalable. In this blog post, we’ll walk through the topology, configuration steps, and key observations.

---

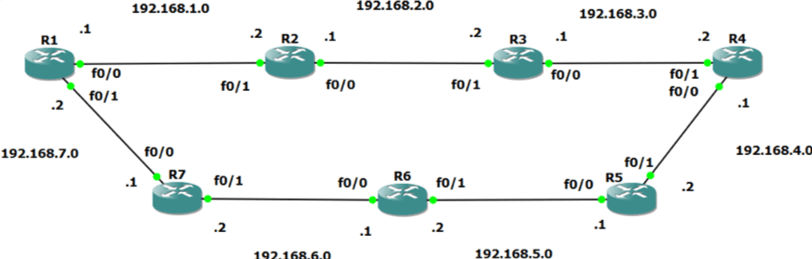

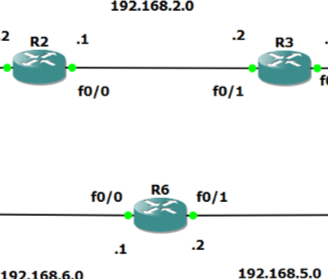

Network Topology Overview

The network consists of 8 routers configured in a structured topology with multiple subnets. Here's a breakdown of the network:

- Routers: R1, R2, R3, R4, R5, R6, R7, and R8

- Subnets:

- 192.168.1.0/30

- 192.168.2.0/30

- 192.168.3.0/30

- 192.168.4.0/30

- 192.168.5.0/30

- 192.168.6.0/30

- 192.168.7.0/30

The routers are connected as follows:

- R1 connects to R2 and R7.

- R2 connects to R1 and R3.

- R3 connects to R2 and R4.

- R4 connects to R3 and R5.

- R5 connects to R4 and R6.

- R6 connects to R5 and R7.

- R7 connects to R6 and R1.

This forms a mesh-like structure with dual paths between certain routers, which EIGRP handles efficiently.

---

EIGRP Configuration

Each router is running EIGRP with Autonomous System (AS) number 1. EIGRP allows for fast convergence and efficient load balancing over multiple links, which is one of the reasons why it is preferred in this scenario.

Here is a sample configuration for R1:

```bash

Router(config)# router eigrp 1

Router(config-router)# network 192.168.1.0 0.0.0.3

Router(config-router)# network 192.168.7.0 0.0.0.3

Router(config-router)# no auto-summary

```

This configuration enables EIGRP on R1 for the directly connected subnets 192.168.1.0/30 and 192.168.7.0/30. The `no auto-summary` command disables EIGRP’s default behavior of automatically summarizing networks, which is essential in this lab to ensure all subnets are advertised correctly.

For each router, the EIGRP configuration follows a similar pattern, with adjustments for the correct subnets.

---

Verification and Testing

Once EIGRP was configured on all routers, I verified the routing tables and ensured proper convergence.

To check the EIGRP neighbors on R1:

```bash

R1# show ip eigrp neighbors

```

This command confirmed that R1 had established EIGRP adjacencies with R2 and R7.

Additionally, I verified the routing table on R3:

```bash

R3# show ip route eigrp

```

The output showed that R3 had routes to all networks via EIGRP, confirming that the protocol was distributing routing information as expected.

Key Observations

1. Convergence Time: The network converged quickly when links were brought up, thanks to EIGRP’s efficient DUAL (Diffusing Update Algorithm). This ensures minimal downtime if a link fails.

2. Load Balancing: EIGRP automatically balanced traffic across multiple paths between routers where feasible. For instance, traffic from R1 to R5 can take both the R1-R2-R3-R4-R5 path or the R1-R7-R6-R5 path. This is due to EIGRP’s ability to use equal and unequal cost load balancing.

3. Scalability: With a simple adjustment to the topology, additional routers or subnets could be easily incorporated, making EIGRP a scalable solution for expanding networks.

4. Efficiency: EIGRP only sends updates when necessary (triggered updates) rather than periodically, which conserves bandwidth on the network.

Conclusion

This lab provided a practical demonstration of how EIGRP operates within a network of routers. The protocol’s fast convergence time, load balancing capabilities, and efficient use of bandwidth make it a strong candidate for scalable enterprise networks. EIGRP’s simplicity and performance, particularly in environments with multiple paths and subnets, highlight why it remains a popular choice for routing in today’s networks.

Whether you are preparing for a certification or looking to understand routing protocols in-depth, EIGRP is a great place to start. Through this lab, I was able to explore and appreciate its effectiveness in dynamic routing scenarios.

Next Steps

In future labs, I will experiment with more advanced EIGRP features such as route summarization and redistribution between different routing protocols. Stay tuned for those updates!
