OSPF Lab Overview: Cisco and Juniper Interoperability
Introduction
This lab explores the configuration and operation of Open Shortest Path First (OSPF) in a multi-vendor environment using both Cisco and Juniper routers. OSPF is a widely-used, link-state routing protocol that allows for dynamic routing and fast convergence in IP networks. In this lab, we examine OSPF in a multi-area setup, connecting several routers across different subnets and loopback interfaces.

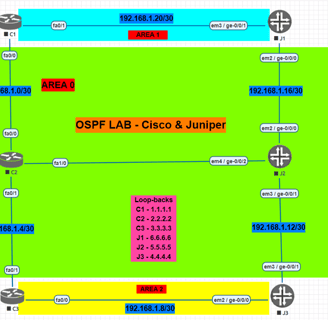

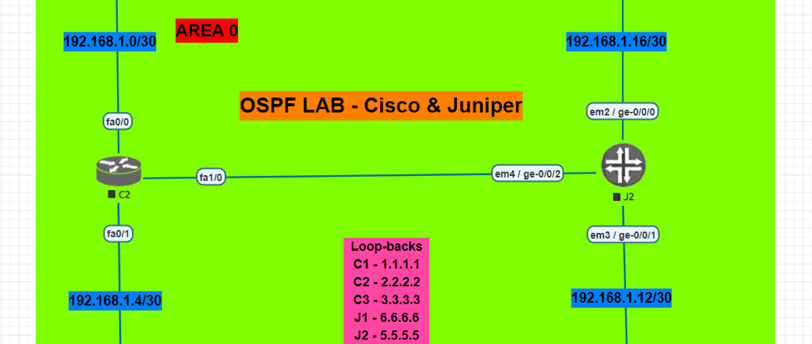

Network Topology Overview
The lab is divided into three key OSPF areas: Area 0, Area 1, and Area 2. Below is a description of each part of the topology:
- Area 0 (Backbone Area):
- Routers: C2, J2
- Subnets:
- 192.168.1.1/30 (between C1 and C2)
- 192.168.1.5/30 (between J2 and J1)
- 192.168.1.9/30 (between C3 and C2)
- This area acts as the central backbone to which all other areas connect. Area 0 is essential for OSPF's hierarchical design.
- Area 1:
- Routers: C1, J1
- Subnet: 192.168.1.1/30 (between C1 and C2)
- Loopbacks:
- C1: 1.1.1.1
- J1: 4.4.4.4
- This area connects to C2 and is responsible for routing traffic from C1 and J1 through C2.
- Area 2:
- Routers: C3, J2
- Subnets:
- 192.168.1.8/30 (between C3 and J2)
- Loopbacks:
- C3: 3.3.3.3
- J2: 6.6.6.6
- This area connects through J2 and C3, with C3 and J2 handling traffic for their respective networks.
The OSPF lab demonstrates interoperability between Cisco and Juniper routers, which is crucial in real-world networking environments where mixed vendor equipment is common.
---
Router Details
Here are the routers used in this setup and their corresponding loopback addresses:
- C1: Cisco Router with loopback 1.1.1.1
- C2: Cisco Router with loopback 2.2.2.2
- C3: Cisco Router with loopback 3.3.3.3
- J1: Juniper Router with loopback 4.4.4.4
- J2: Juniper Router with loopback 6.6.6.6
OSPF Configuration Details
This lab involves configuring OSPF on both Cisco and Juniper routers, ensuring proper area segmentation, neighbor relationships, and routing updates across all subnets.
OSPF on Cisco Routers
Sample configuration for C1:
```bash
Router(config)# router ospf 1
Router(config-router)# network 192.168.1.0 0.0.0.3 area 1
Router(config-router)# network 1.1.1.1 0.0.0.0 area 1
Router(config-router)# network 192.168.1.4 0.0.0.3 area 0
In this configuration:
- Router C1 is part of Area 1, advertising both its loopback (1.1.1.1/32) and the 192.168.1.0/30 subnet.
- It connects to C2 through Area 0, ensuring that OSPF routes are shared across areas.
Sample configuration for C2:
```bash
Router(config)# router ospf 1
Router(config-router)# network 192.168.1.0 0.0.0.3 area 0
Router(config-router)# network 192.168.1.8 0.0.0.3 area 0
Router(config-router)# network 2.2.2.2 0.0.0.0 area 0
```
C2 connects to both C1 and C3, acting as the backbone router in Area 0 and handling communication between the two areas.
OSPF on Juniper Routers
Juniper routers follow a similar configuration, but the syntax differs slightly from Cisco IOS.
Sample configuration for J1:
```bash
set protocols ospf area 1 interface ge-0/0/0.0
set protocols ospf area 1 interface lo0.0
```
This configuration places J1 in Area 1, enabling OSPF on the interface to C2 and the loopback (4.4.4.4).
Sample configuration for J2:
```bash
set protocols ospf area 0 interface ge-0/0/1.0
set protocols ospf area 0 interface lo0.0
```
J2 operates in Area 0 and connects to C2 and C3, facilitating routing updates between these routers.
Key OSPF Features Observed
1. Inter-Area Routing:
The backbone Area 0 effectively connects the other two areas (Area 1 and Area 2), ensuring that routes from one area are accessible from another. For example, the loopback network of C1 (1.1.1.1/32 in Area 1) is reachable from routers in Area 2, like C3.
2. OSPF Neighbor Adjacencies:
Proper adjacency was established between the Cisco and Juniper routers, demonstrating that OSPF is fully interoperable across different vendor devices. For instance, C2 and J2 in Area 0 formed an adjacency, allowing routing information to be exchanged seamlessly.
3. OSPF Hierarchical Design:
The hierarchical nature of OSPF allows for efficient routing and minimizes the size of the routing table by summarizing routes at area boundaries. In this setup, C2 and J2 are responsible for summarizing routes from their respective areas.
4. Loopback Addressing:
Loopbacks were used in this lab for each router, which is a common best practice in OSPF configurations to ensure stable router IDs and aid in troubleshooting.
Verification and Testing
Cisco Verification Commands
To verify OSPF neighbor relationships on Cisco routers, the following command was used:
```bash
show ip ospf neighbor
```
This command displays OSPF neighbor adjacencies. It was executed on C2 to verify its adjacencies with C1, J2, and C3.
```bash
show ip route ospf
```
This command was used to view the OSPF-learned routes in the routing table. All routes from the other areas were successfully learned by routers in different areas, confirming proper OSPF route distribution.
Juniper Verification Commands
On Juniper routers, the following command was used to verify neighbor adjacencies:
```bash
show ospf neighbor
```
This confirmed that adjacencies were established between Juniper routers and their Cisco counterparts. Additionally, the command:
```bash
show route protocol ospf
```
was used to verify that routes learned via OSPF were correctly populated in the routing table.
Conclusion
This OSPF lab successfully demonstrated the interoperability of OSPF between Cisco and Juniper devices in a multi-area setup. The use of OSPF in a hierarchical structure, along with loopback interfaces, highlights the protocol's scalability and efficiency. Whether you're working in a single-vendor or multi-vendor network, OSPF proves to be an adaptable and robust solution for dynamic routing.
Next Steps
Future labs could focus on:
- OSPF Summarization: Implementing summarization at area boundaries for even more efficient routing.
- Redistribution: Configuring route redistribution between OSPF and other protocols like EIGRP or BGP.
- Security: Implementing OSPF authentication to secure routing updates across different areas.
